SOFT JAWS FOR KITAGAWA 165 MM POWER CHUCK (SET OF 3) | 30° JAW ANGLE | PITCH 1.5 X 60°

High-precision soft jaw set designed for Kitagawa 165 mm (6-inch) CNC power chucks. Featuring a 30° pointed jaw profile, this set is built for accurate clamping, minimum runout, and reliable repeatability during heavy-duty turning operations.

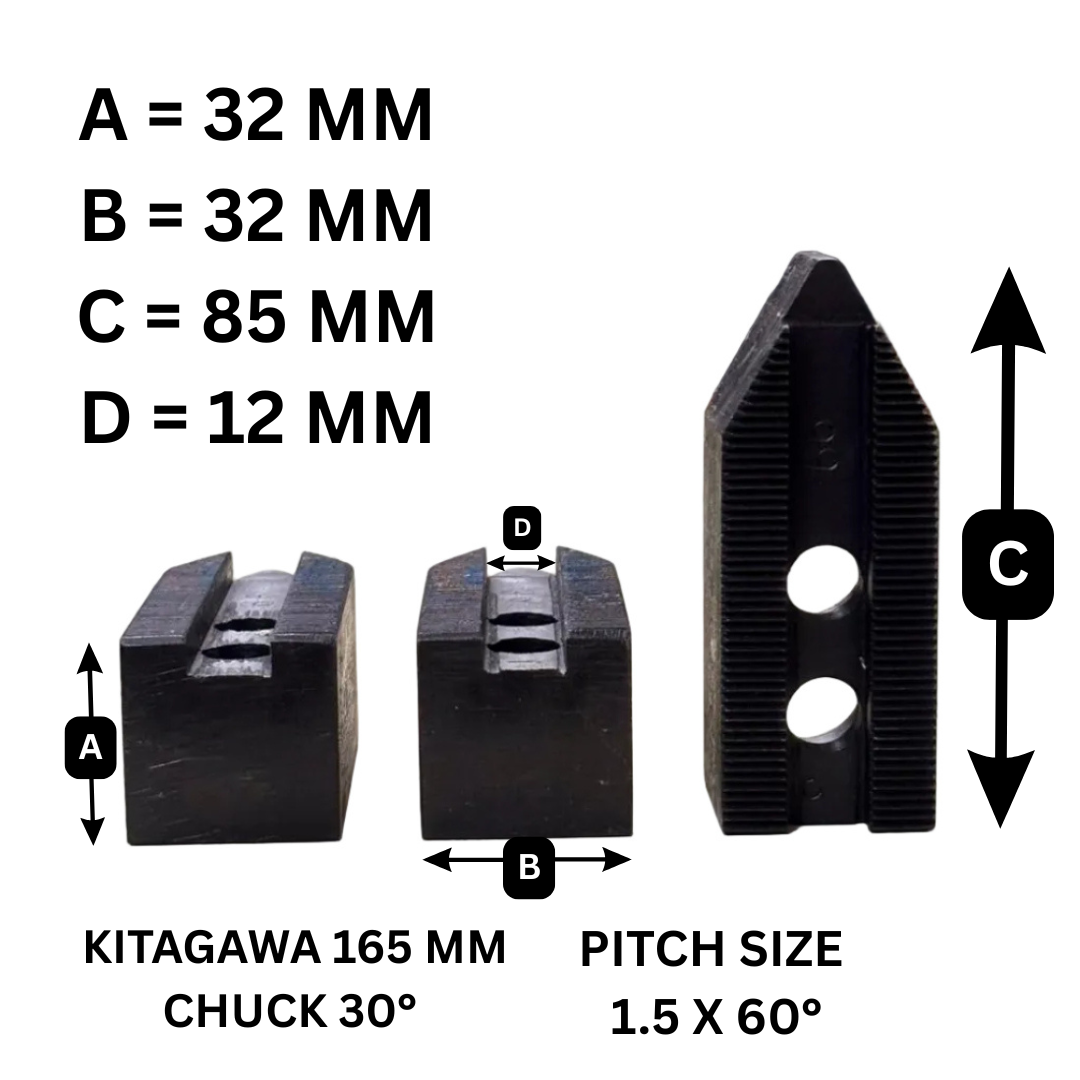

TECHNICAL SPECIFICATIONS

• Chuck Compatibility: Kitagawa 165 mm (6-inch) Power Chuck

• Jaw Point Angle: 30°

• Pitch / Serration: 1.5 x 60°

• Height (A): 32 mm

• Width (B): 32 mm

• Length (C): 85 mm

• Groove Width (D): 12 mm

• Quantity: Set of 3 Jaws

KEY FEATURES

• 30° Pointed Design: Provides maximum clearance and access for tool paths when working close to the chuck face.

• Precision Machined: Ensures tight tolerance clamping to reduce workpiece runout and vibration.

• Customisable Profile: Easily turned, bored, or milled to secure specific or irregular component shapes.

• Rigid Construction: Built to withstand high clamping forces on CNC lathes and turning centers.
